Summary

Decode Slot Usage Plot

st-scrape weaksm.30 --spec-reset --settings-omit-default --settings /home/cmichael/dis-work/weakened/st/datasets/batch.weaksm.0030/settings-htmlize.scrape --settings /home/cmichael/dis-work/weakened/st/datasets/batch.weaksm.0030/settings-htmlize-user.scrape --plot-outliers-clip --plot c_dsu_commit c_dsu_other c_dsu_mispred_s c_dsu_rob_full_s

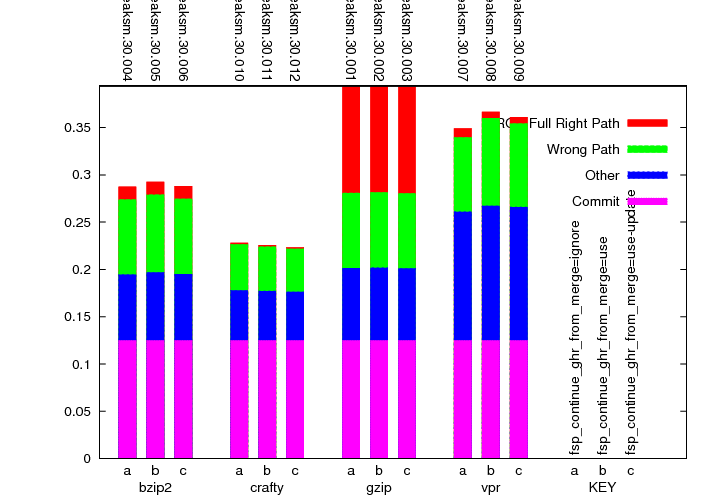

Decode slot usage graph.

List of Tables

  • Data Overview
  • Branch Predictor Data
  • Cache Data

    Simulated Configurations

    st-scrape weaksm.30 --spec-reset --settings-omit-default --settings /home/cmichael/dis-work/weakened/st/datasets/batch.weaksm.0030/settings-htmlize.scrape --settings /home/cmichael/dis-work/weakened/st/datasets/batch.weaksm.0030/settings-htmlize-user.scrape --uniq fsp_continue_ghr_from_merge fSystem fbpmethod fROB fIW fmt_thread_limit fL1Line fL1A fL1_kiB fL1Lat fL2_kiB fL2A fcL2Lat fMemLat
    fsp_continue_ghr_from_merge
    Fetch Mechanism
    Branch Predictor
    ROB
    Decode Width
    Threads
    Line Size
    L1 Assoc.
    L1/kiB
    L1 Latency
    L2/kiB
    L2 Assoc.
    L2 Latency
    Mem Latency
    Sort
    0ignore 0MBP-1 0yags 0256 08 0200 064 04 064 01 02048 08 016 0100
    1use 0MBP-1 0yags 0256 08 0200 064 04 064 01 02048 08 016 0100
    2use-update 0MBP-1 0yags 0256 08 0200 064 04 064 01 02048 08 016 0100

    Simulated Benchmarks

    scpu00.bzip2.ah.web100 scpu00.crafty.lgred scpu00.gzip.ah.log scpu00.vpr.ah.ref

    Data Overview

    st-scrape weaksm.30 --spec-reset --settings-omit-default --settings /home/cmichael/dis-work/weakened/st/datasets/batch.weaksm.0030/settings-htmlize.scrape --settings /home/cmichael/dis-work/weakened/st/datasets/batch.weaksm.0030/settings-htmlize-user.scrape fSerial fBenchmark fSystem fROB fIW fL1_kiB fL2_kiB fsp_continue_ghr_from_merge dcycles cipc cbp_ratio cl1hr cl2hr
    Run ID
    Benchmark
    Fetch Mechanism
    ROB
    Decode Width
    L1/kiB
    L2/kiB
    fsp_continue_ghr_from_merge
    Execution Time
    IPC
    BP Ratio
    L1 Hit Ratio
    L2 Hit Ratio
    Sort Sort Sort Sort Sort Sort Sort Sort
    0weaksm.30.001 2gzip 0MBP-1 0256 08 064 02048 0ignore 7113047637 12.543 100.9688 40.9634 00.9956
    1weaksm.30.002 2gzip 0MBP-1 0256 08 064 02048 1use 8113309681 02.537 90.9646 50.9634 20.9956
    2weaksm.30.003 2gzip 0MBP-1 0256 08 064 02048 2use-update 6112965703 22.545 110.9688 30.9634 10.9956
    3weaksm.30.004 0bzip2 0MBP-1 0256 08 064 02048 0ignore 063695863 83.481 70.9448 70.9761 70.9984
    4weaksm.30.005 0bzip2 0MBP-1 0256 08 064 02048 1use 264848283 63.419 30.9394 80.9763 60.9984
    5weaksm.30.006 0bzip2 0MBP-1 0256 08 064 02048 2use-update 163838800 73.473 50.9441 60.9761 80.9984
    6weaksm.30.007 3vpr 0MBP-1 0256 08 064 02048 0ignore 3104678267 52.866 20.9189 00.9397 30.9962
    7weaksm.30.008 3vpr 0MBP-1 0256 08 064 02048 1use 5109932006 32.729 00.9102 20.9409 50.9963
    8weaksm.30.009 3vpr 0MBP-1 0256 08 064 02048 2use-update 4108275290 42.771 10.9130 10.9403 40.9962
    9weaksm.30.010 1crafty 0MBP-1 0256 08 064 02048 0ignore 11243253681 94.385 40.9433 100.9941 110.9998
    10weaksm.30.011 1crafty 0MBP-1 0256 08 064 02048 1use 10240517452 104.435 60.9444 110.9941 100.9998
    11weaksm.30.012 1crafty 0MBP-1 0256 08 064 02048 2use-update 9238224029 114.477 80.9472 90.9941 90.9998

    Branch Predictor Data

    st-scrape weaksm.30 --spec-reset --settings-omit-default --settings /home/cmichael/dis-work/weakened/st/datasets/batch.weaksm.0030/settings-htmlize.scrape --settings /home/cmichael/dis-work/weakened/st/datasets/batch.weaksm.0030/settings-htmlize-user.scrape fSerial fBenchmark fbpmethod fbphistory fsp_continue_ghr_from_merge cbp_ratio cbp_bad_ratio cbp_bad_rate dttrbpc cbp_bad_impact
    Run ID
    Benchmark
    Branch Predictor
    BP History Length
    fsp_continue_ghr_from_merge
    BP Ratio
    BP Bad Ratio
    BP Bad / M Insn
    Time to Resolve Mispred. Branch
    BP Bad Impact
    Sort Sort Sort Sort Sort Sort Sort Sort
    0weaksm.30.001 2gzip 0yags 016 0ignore 100.9688 10.0312 34589 724.1 50.8848
    1weaksm.30.002 2gzip 0yags 016 1use 90.9646 20.0354 55207 523.0 70.9581
    2weaksm.30.003 2gzip 0yags 016 2use-update 110.9688 00.0312 24581 724.1 40.8833
    3weaksm.30.004 0bzip2 0yags 016 0ignore 70.9448 40.0552 66715 216.4 30.8810
    4weaksm.30.005 0bzip2 0yags 016 1use 30.9394 80.0606 87370 318.5 81.0907
    5weaksm.30.006 0bzip2 0yags 016 2use-update 50.9441 60.0559 76789 216.4 60.8907
    6weaksm.30.007 3vpr 0yags 016 0ignore 20.9189 90.0811 99666 623.7 91.8327
    7weaksm.30.008 3vpr 0yags 016 1use 00.9102 110.0898 1110697 422.7 111.9426
    8weaksm.30.009 3vpr 0yags 016 2use-update 10.9130 100.0870 1010370 422.7 101.8833
    9weaksm.30.010 1crafty 0yags 016 0ignore 40.9433 70.0567 44668 015.3 20.5714
    10weaksm.30.011 1crafty 0yags 016 1use 60.9444 50.0556 14577 115.4 10.5639
    11weaksm.30.012 1crafty 0yags 016 2use-update 80.9472 30.0528 04342 115.4 00.5350

    Cache Data

    st-scrape weaksm.30 --spec-reset --settings-omit-default --settings /home/cmichael/dis-work/weakened/st/datasets/batch.weaksm.0030/settings-htmlize.scrape --settings /home/cmichael/dis-work/weakened/st/datasets/batch.weaksm.0030/settings-htmlize-user.scrape fSerial fBenchmark fsp_continue_ghr_from_merge cncpi c_load_nc_l2_impact c_load_nc_local_impact c_load c_load_nc c_load_per_insn c_load_nc_per_insn c_load_nc_by_per_nc c_load_nc_l1_per_nc c_load_nc_l2_per_nc c_load_nc_local_per_nc
    Run ID
    Benchmark
    fsp_continue_ghr_from_merge
    NCPI
    NC L2 Impact
    NC Mem Impact
    Loads
    NC Loads
    Loads / Insn
    NC Loads / Insn
    NC LSQ / NC Load
    NC L1 / NC Load
    NC L2 / NC Load
    NC Mem / NC Load
    Sort Sort Sort Sort Sort Sort Sort Sort Sort Sort Sort Sort Sort Sort
    0weaksm.30.001 2gzip 0ignore 103.145 60.786 50.025 055046410 052095685 00.1915 00.1812 50.0702 30.8958 60.0339 70.0002
    1weaksm.30.002 2gzip 1use 113.153 80.786 60.025 055046410 252107083 00.1915 20.1812 30.0700 50.8959 70.0339 60.0002
    2weaksm.30.003 2gzip 2use-update 93.143 70.786 60.025 055046410 152095708 00.1915 10.1812 40.0701 40.8958 80.0339 80.0002
    3weaksm.30.004 0bzip2 0ignore 32.298 40.751 30.009 158934566 357600657 30.2658 90.2598 00.0521 100.9253 40.0226 50.0000
    4weaksm.30.005 0bzip2 1use 52.340 30.747 40.009 158934566 557666602 30.2658 110.2601 10.0521 110.9254 30.0224 30.0000
    5weaksm.30.006 0bzip2 2use-update 42.304 50.751 30.009 158934566 457603363 30.2658 100.2598 20.0523 90.9251 50.0226 40.0000
    6weaksm.30.007 3vpr 0ignore 62.791 111.502 90.042 269263773 666134359 20.2309 60.2204 110.1141 00.8324 110.0532 110.0002
    7weaksm.30.008 3vpr 1use 82.932 91.488 70.041 269263773 866338734 20.2309 80.2211 90.1074 20.8398 90.0526 90.0002
    8weaksm.30.009 3vpr 2use-update 72.887 101.500 80.042 269263773 766244334 20.2309 70.2208 100.1077 10.8390 100.0531 100.0002
    9weaksm.30.010 1crafty 0ignore 21.824 20.135 00.000 3208007741 10206897335 10.1950 40.1940 60.0785 80.9160 20.0054 00.0000
    10weaksm.30.011 1crafty 1use 11.804 00.134 10.000 3208007741 11206898172 10.1950 50.1940 80.0789 70.9157 00.0054 10.0000
    11weaksm.30.012 1crafty 2use-update 01.787 10.135 20.000 3208007741 9206897134 10.1950 30.1940 70.0789 60.9157 10.0054 20.0000
