Summary

Decode Slot Usage Plot

st-scrape loni.51 --spec-reset --settings-omit-default --settings /home/santoshv/datasets/batch.loni.0051/settings-htmlize.scrape --settings /home/santoshv/datasets/batch.loni.0051/settings-htmlize-user.scrape --plot-outliers-clip --plot c_dsu_commit c_dsu_other c_dsu_mispred_s c_dsu_rob_full_s

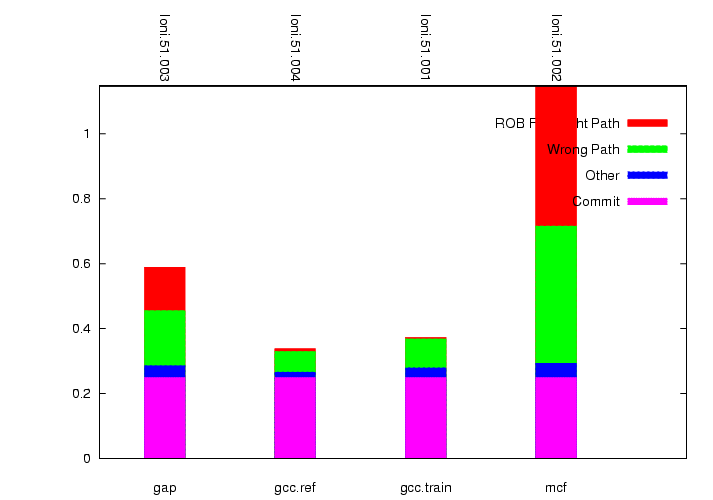

Decode slot usage graph.

List of Tables

  • Data Overview
  • Branch Predictor Data
  • Cache Data

    Simulated Configurations

    st-scrape loni.51 --spec-reset --settings-omit-default --settings /home/santoshv/datasets/batch.loni.0051/settings-htmlize.scrape --settings /home/santoshv/datasets/batch.loni.0051/settings-htmlize-user.scrape --uniq fSystem fbpmethod fROB fIW fmt_thread_limit fL1Line fL1A fL1_kiB fL1Lat fL2_kiB fL2A fcL2Lat fMemLat
    Fetch Mechanism
    Branch Predictor
    ROB
    Decode Width
    Threads
    Line Size
    L1 Assoc.
    L1/kiB
    L1 Latency
    L2/kiB
    L2 Assoc.
    L2 Latency
    Mem Latency
    0MBP-1 0yags 0256 04 01 064 04 04 01 02048 08 016 0100

    Simulated Benchmarks

    scpu00.gap.train scpu00.gcc.ref.expr scpu00.gcc.train scpu00.mcf.train

    Data Overview

    st-scrape loni.51 --spec-reset --settings-omit-default --settings /home/santoshv/datasets/batch.loni.0051/settings-htmlize.scrape --settings /home/santoshv/datasets/batch.loni.0051/settings-htmlize-user.scrape fSerial fBenchmark fSystem fROB fIW fL1_kiB fL2_kiB dcycles cipc cbp_ratio cl1hr cl2hr
    Run ID
    Benchmark
    Fetch Mechanism
    ROB
    Decode Width
    L1/kiB
    L2/kiB
    Execution Time
    IPC
    BP Ratio
    L1 Hit Ratio
    L2 Hit Ratio
    Sort Sort Sort Sort Sort Sort Sort
    0loni.51.001 2gcc.train 0MBP-1 0256 04 04 02048 01719316544 22.678 20.9780 20.9178 30.9895
    1loni.51.002 3mcf 0MBP-1 0256 04 04 02048 38772816136 00.872 00.9426 00.6276 00.9310
    2loni.51.003 0gap 0MBP-1 0256 04 04 02048 24364653303 11.697 10.9757 30.9268 20.9656
    3loni.51.004 1gcc.ref 0MBP-1 0256 04 04 02048 14178085655 32.954 30.9876 10.9134 10.9612

    Branch Predictor Data

    st-scrape loni.51 --spec-reset --settings-omit-default --settings /home/santoshv/datasets/batch.loni.0051/settings-htmlize.scrape --settings /home/santoshv/datasets/batch.loni.0051/settings-htmlize-user.scrape fSerial fBenchmark fbpmethod fbphistory cbp_ratio cbp_bad_ratio cbp_bad_rate dttrbpc cbp_bad_impact
    Run ID
    Benchmark
    Branch Predictor
    BP History Length
    BP Ratio
    BP Bad Ratio
    BP Bad / M Insn
    Time to Resolve Mispred. Branch
    BP Bad Impact
    Sort Sort Sort Sort Sort Sort Sort
    0loni.51.001 2gcc.train 0yags 016 20.9780 10.0220 24159 020.3 10.3377
    1loni.51.002 3mcf 0yags 016 00.9426 30.0574 311137 338.6 31.7195
    2loni.51.003 0gap 0yags 016 10.9757 20.0243 13418 229.2 20.3992
    3loni.51.004 1gcc.ref 0yags 016 30.9876 00.0124 02390 125.1 00.2400

    Cache Data

    st-scrape loni.51 --spec-reset --settings-omit-default --settings /home/santoshv/datasets/batch.loni.0051/settings-htmlize.scrape --settings /home/santoshv/datasets/batch.loni.0051/settings-htmlize-user.scrape fSerial fBenchmark cncpi c_load_nc_l2_impact c_load_nc_local_impact c_load c_load_nc c_load_per_insn c_load_nc_per_insn c_load_nc_by_per_nc c_load_nc_l1_per_nc c_load_nc_l2_per_nc c_load_nc_local_per_nc
    Run ID
    Benchmark
    NCPI
    NC L2 Impact
    NC Mem Impact
    Loads
    NC Loads
    Loads / Insn
    NC Loads / Insn
    NC LSQ / NC Load
    NC L1 / NC Load
    NC L2 / NC Load
    NC Mem / NC Load
    Sort Sort Sort Sort Sort Sort Sort Sort Sort Sort Sort Sort Sort
    0loni.51.001 2gcc.train 11.494 10.593 00.046 0689902713 0542029619 10.1498 10.1177 20.0318 20.8886 10.0788 00.0008
    1loni.51.002 3mcf 34.590 34.461 32.397 32262421547 21564177120 30.2959 20.2046 00.0174 00.6166 30.3407 30.0253
    2loni.51.003 0gap 22.357 20.915 20.236 11680646027 31587508023 20.2269 30.2143 30.0563 10.8747 00.0667 10.0024
    3loni.51.004 1gcc.ref 01.354 00.492 10.144 21726484963 11166987076 00.1399 00.0945 10.0234 30.8921 20.0812 20.0033
